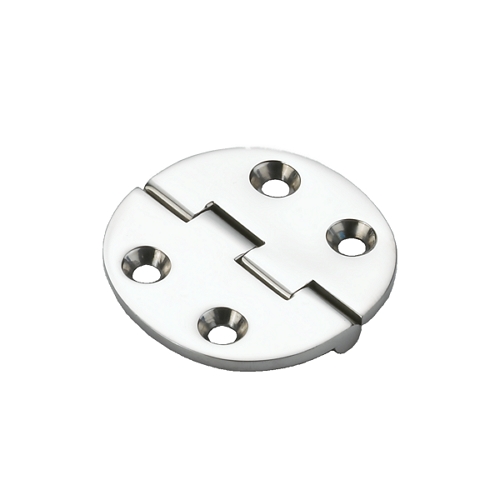

2-9/16" Euro Hinges

56898, 56899, 56900, 56901
PRODUCT INFORMATION

316 Stainless Steel / Bright Polish

Swipe table to get more infomation.

Part # Description Pin Mount Std Pk Class*
56898 2-9/16” x 2-9/16” Euro Hinge Bottom Surface 28 A
56899 2-9/16” x 2-9/16” Euro Hinge Bottom Stud 28 A
56900 2-9/16” x 2-9/16” Euro Hinge Top Surface 28 A
56901 2-9/16” x 2-9/16” Euro Hinge Top Stud 28 A
* Inventory Class
A. Catalog items typically kept in stock and available for immediate shipment.
B. Catalog items where inventory levels are determined by customer forecasts. May require lead time for new orders.
C. Produced from custom tooling and stocked to purchase orders only.

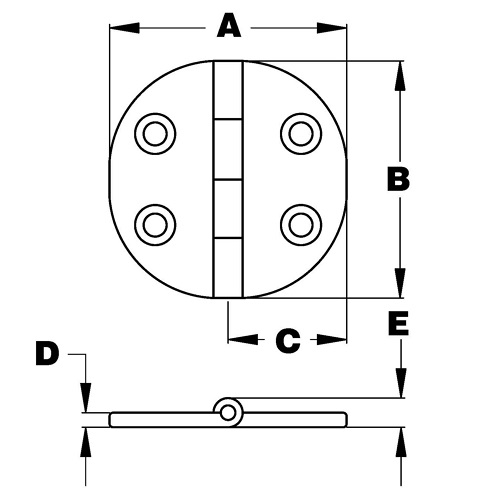

DIMENSIONS



Swipe table to get more infomation.

Part # A B C D E F Fastener
56898 2-9/16" 2-9/16" 1-1/4" 3/16" 5/16"   #12 (not included)
56899 2-9/16" 2-9/16" 1-1/4" 3/16" 5/16" 2" Stud M6 (not included)
56900 2-9/16" 2-9/16" 1-1/4" 3/16" 5/16"   #12 (not included)
56901 2-9/16" 2-9/16" 1-1/4" 3/16" 5/16" 2" Stud M6 (not included)
